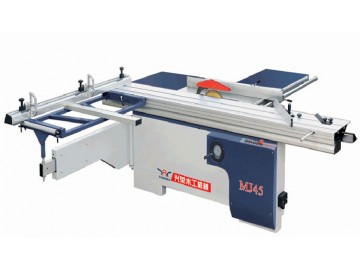

點擊圖片查看大圖裁板鋸MJ6130TD precision panel saw (45度圓棒推臺)
|
推臺尺寸Dimension of sliding table |
3000*375mm |
|
大切割長度Gross cut capacity |
3000mm |
|
大切割寬度Gross cut width |
1200mm |
|
主鋸片直徑Main saw blade diameter |
300mm |
|
主鋸內空直徑Bore of main saw blade |
30mm |
|
大切割厚度Max height of cut |
80mm |
|
45°大切割厚度Height of cut with saw blade 300mm at 45° |
50mm |
|
主軸轉速Speed of main saw spindle |
4500/5500rpm |
|
鋸切角度Tilting saw blade |
0-45degree |
|
主電機功率Main motor |
4kw |
|
劃線鋸直徑Scoring saw blade diameter |
120mm |
|
劃線鋸轉速Speed of scoring saw blade |
8000rpm |
|
副軸直徑Scoring spindle diameter |
20mm |
|
副電機功率Scoring motor |
0.75kw |
|
毛重Gross weight |
650kg |
|
導軌 |
圓棒導軌直徑 |
