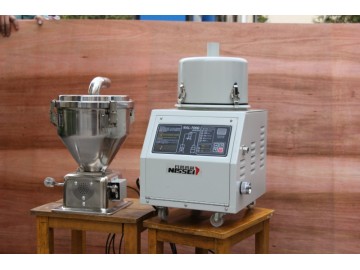

性能特點： ? 主機與料斗分體設計，安全、簡便。 ? 獨立濾清裝置，方便清除積塵。 ? 不銹鋼料斗。 ? 微電腦操作控制程序。 ? 過載、缺料報警。 ? 700G采用高速整流馬達，體積小、吸力強，適合用于新料輸送。 ? 此系列產品通過歐洲CE標準認證 Features: ? Host machine separated from the hopper, easy and safe to operate. ? Independent filter for easy cleaning. ? Stainless hopper. ? Microcomputer controlled. ? Alarm for overload and lack of material. ? High-speed rectificative motor of small footprint and strong suction force for new material for XYAL-700G. ? Induction high-pressure pump of low noise and long service time for XYAL-800G & XYAL-800G2. ? Reverse cleaning for XYAL-800G & XYAL-800G2. ? With CE authentication. 技術參數： 型號Model XYAL-700G XYAL-800G XYAL-800G2 馬達 型式 碳刷式 感應式 感應式 規格 1KW/1.3HP 1φ 1.1KW/1.5HP 3φ 2.2KW/3HP 3φ 輸送能力(kg/h) 310 450 590 吸料揚程 4 4 5 靜風壓(mm/H2O) 1550 1800 2500 儲料桶容量(L) 6 10 10 送料管內徑 φ38 φ38 φ38 配送料管 φ38mmx4m 2pcs φ38mmx4m 2pcs φ38mmx5m 2pcs 外形尺 主機 37x30x56 42x38x64 50x40x72 儲料桶 28x34x43 45x32x45 45x32x45 凈重 主機 14 47 66 儲料桶 6 6 10 ? 參數中的輸送能力及吸料揚程是以ABS原料為測試材料得出的數據，實際參數根據塑料比重、形狀及輸送長度、高度、管路特性、參數設定等因素而改變。 ? 吸料機在輸送材料時，料管需選配耐160度高溫料管。 ? The parameters of the conveying capacity and suction lift are educed from tests on ABS. The actual parameters may be different due to the differences of the specific gravity and the shape of the material, the conveying distance and height, the specialty of pipeline and the setting of parameters. ? Heat-resistant(160℃) pipes should be used when conveying hot material.
