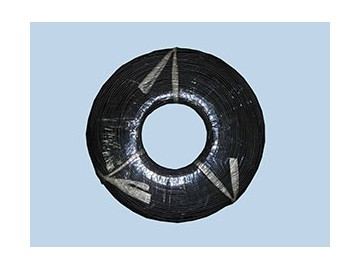

點擊圖片查看大圖|
Product De |
|||||||
| ■Tinned ,annealed,stranded or solid copper conductor. | |||||||
| ■Color -coded Semi-rigid PVC insulation. | |||||||
| ■Rated temperature:80℃.Rated voltage:300volts | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test | |||||||
| ■Top coated conductor is avaiable | |||||||
| 說明： | |||||||
| ■導體使用單股或絞線裸銅或鍍錫銅 | |||||||
| ■半硬質PVC絕緣 | |||||||
| ■額定溫度：80℃額定電壓：300Volts | |||||||
| ■使用標準厚度，易剝，截?cái)嗳菀住? | |||||||
| ■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試 | |||||||
| ■可使用先絞后鍍（TC）為導體 | |||||||
| Applications: | |||||||
| ■For general purpose internal wiring of electronic and electrical equipment. | |||||||
| 應用： | |||||||
| ■用于電子、電器設備內部配線 | |||||||
| UL Style& CSA Type | Conductor | Insulation | Overall | Stand Put-up | Conductor | ||
| 導體 | Thickness | Diameter | 標準長度 | Resistance at 20℃導體電阻 | |||
| 線號 | 線數/線徑 | 絕緣厚度 | 完成外徑 | 英制 | 公制 | ||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL1095 | 30 | 7/0.102 | 0.3 | 0.95 | 2000 | 610 | 381 |
| CSAAWM I A | 28 | 7/0.127 | 0.3 | 1.05 | 2000 | 610 | 239 |
| （Stranded) | 26 | 7/0.16 | 0.3 | 1.15 | 2000 | 610 | 150 |
| 絞線 | 24 | 11/0.16 | 0.3 | 1.3 | 2000 | 610 | 94.2 |
| 22 | 17/0.16 | 0.3 | 1.45 | 2000 | 610 | 59.4 | |
| 20 | 21/0.178 | 0.3 | 1.65 | 2000 | 610 | 36.7 | |
| 18 | 34/0.178 | 0.3 | 1.9 | 2000 | 610 | 23.2 | |
| 16 | 26/0.25 | 0.3 | 2.1 | 2000 | 610 | 14.6 | |
| UL1095 | 30 | 1/0.254 | 0.3 | 0.9 | 2000 | 610 | 361 |
| CSAAWM I A | 28 | 1/0.32 | 0.3 | 1 | 2000 | 610 | 227 |
| （Solid) | 26 | 1/0.404 | 0.3 | 1.05 | 2000 | 610 | 143 |
| 單股 | 24 | 1/0.511 | 0.3 | 1.2 | 2000 | 610 | 89.3 |
| 22 | 1/0.643 | 0.3 | 1.3 | 2000 | 610 | 56.4 | |
| 20 | 1/0.813 | 0.3 | 1.5 | 2000 | 610 | 35.2 | |
| 18 | 1/1.024 | 0.3 | 1.7 | 2000 | 610 | 22.2 | |
| 16 | 1/1.29 | 0.3 | 1.9 | 2000 | 610 | 14 | |
| 以上線材數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！終解釋權歸東莞市揚大電子科技有限公司所有 | |||||||
供應UL1095多芯電子線 環保認證線
